Quick Details

  • Type: Vehicle Gps Tracker
  • Dimension: 105 mm x 65 mm x 26 mm
  • Weight: 190g
  • Power supply: DC 11-36 V/1.5 A
  • Backup battery: 400 mAh/3.7 V
  • Power consumption: Current in standby mode: 65mA
  • Sensor: 3-axis accelerometer
  • GSM frequency band: GSM/GPRS: 850/900/1800/1900 MHz
  • WCDMA frequency band: UMTS/HSDPA: 800/850/900/1900/2100 MHz
  • GPS sensitivity: -161 dB
  • Positioning accuracy: 2.5m

Packaging & Delivery

Packaging Details: Box Size: 159x134x89mm
G/W: 1kg per box
Delivery Detail: Shipped in 3 days after payment
PRODUCT OVERVIEW

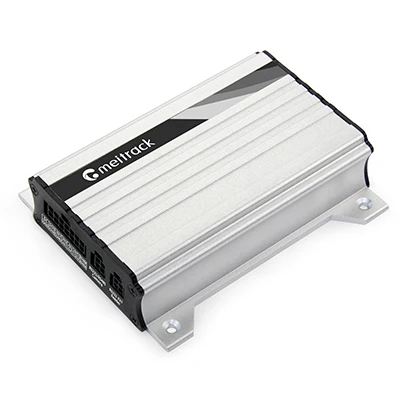

Meitrack  T622G


Advanced 3G Vehicle GPS Tracker


The T622G is a brand new high-end vehicle GPS tracker with market-proven quality and precise positioning. In addition to real-time tracking, it supports various peripherals and can be installed into taxies, freight cars, and buses. It supports GSM quad-band (850/900/1800/1900 MHz), WCDMA penta-band (800/850/900/1900/2100 MHz), and auto roaming switching.



FEATURES



Harsh acceleration/braking alert
Within 3-axis accelerometer, harsh acceleration/ braking alert can be realized.
Mobileye Fleet Safety
Compatible with Mobileye collision avoidance system to keep your drivers and assets safe.
Garmin Fleet Tracking
Streamline dispatching with Garmin intergration to further improve business efficiencies.

Multifunctional
Support CAN bus, camera, LED display,
fuel/temperature sensor, iButton.



APPLICATIONS





SPECIFICATIONS



Dimension105 mm x 65 mm x 26 mmWeight190g
Power supplyDC 11–36 V/1.5 ABackup battery400 mAh/3.7 V
Power consumptionCurrent in standby mode: 65 mAOperating temperature-20°C to 55°C
Operating humidity5% to 95%Working hour

53 hours in power-saving mode

5.5 hours in normal mode

LED indicatorGreen indicator showing the GSM signal, Blue indicator showing the GPS signalButton/Switch1 power button
Memory8 MB bufferSensor3-axis accelerometer (used to wake the device up by vibration and
detect towing alarms)
Frequency band

UMTS/HSDPA: 800/850/900/1900/2100 MHz

GSM/GPRS: 850/900/1800/1900 MHz

GPS sensitivity-161 dB
Positioning accuracy2.5mI/O port

3 digital inputs (1 negative trigger, 1 positive trigger, and 1
positive/negative selectable trigger)

2 analog detection inputs

2 outputs

1 RS232 EXT port

1 RS232/485 port

1 USB port

1-Wire® iButton

1-Wire® temperature sensor

1 CAN bus interface



ACCESSORIES



AccesoriesT622G with a built-in batteryGPS antenna3G antennaI/O cable
USB cableCD download card
Optional AccessoriesCameraiButtonLLS sensorLED display
A76 ultrasonic fuel level sensorGarmin navigatorA53 fuel level sensorA52 digital temperature sensor + A61 sensor box



CERTIFICATES





MEITRACK GPS TRACKING PLATFORM MS03

300+functions customizable

With self-owned sourcing code, we can customize almost every function for you.

Rebrandable

Place your own logo, login in from your own website, on our serve.

Account management

Unlimited authorization to your account and sub-account.

4 configuration methods

Use our professional software Meitrack manager, or use OTA by website/APP, or simply send a SMS.

Multi-screen monitoring

Manage your fleet from anywhere, PC, Laptop, or even on your mobile phone, you can do all three at the same time.

24/7 support
Provide worldwide after service in 24 hours, 7 days a week.

COMPANY OVERVIEW



      Since 2002.
      20,000m² state of the art manufacturing facility based in Shenzhen, China.
      Placed in-house R&D centers in Taiwan, Shenzhen and the United States.
      Providing OEM&ODM service.
      Providing software development service.
      Global network covering Europe, USA, CIS, Middle East, and Asia Pacific Region.



R & D CENTERS



FACTORY TOUR







GLOBAL NETWORK





STRATEGIC COOPERATION





DISTRIBUTION NETWORK



DISTRIBUTION WANTED


For details, welcome to visit http://www.meitrack.com
